TWMNH-66HD (G12R-66 Monofacial Module)
Technology & Design
Built on the TNC 2.0 platform, the TWMNH-66HD features half-cut cell technology and advanced Poly Tech passivation to minimize optical losses. Its optimized cell layout and organic silicone adhesive reduce internal stress, lowering microcrack risks by 30% compared to traditional designs 13.
Performance Highlights
- Power Range: 600–620 Wp with an efficiency of 22.8–23.0% 1318.
- Robust Construction: Single-glass design with 2.0 mm AR-coated front glass and white backsheet for enhanced rear reflectivity.
- Cost Efficiency: Achieves 1.20% CAPEX reduction and 1.28% LCOE reduction through high power density and streamlined BOS requirements .
- Reliability: Certified for extreme conditions, including 5400 Pa front load and 25 mm hail resistance, with a temperature coefficient of -0.28%/°C 1319.
Physical Specifications
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 32.5 kg
- Cell Configuration: 132 half-cut N-type monocrystalline cells (G12R wafer)
- Warranty: 30-year linear power warranty (87.4% retention at year 30) 813.
Applications

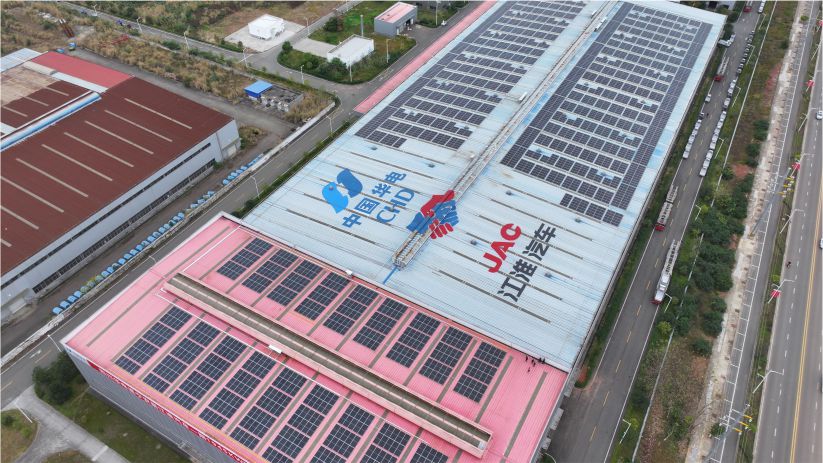

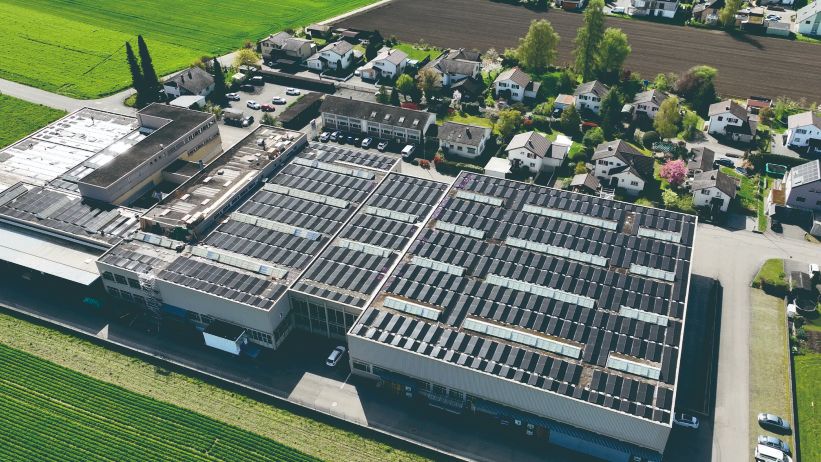

Tailored for large-scale ground-mounted installations and commercial rooftops, where its lightweight design and high power output optimize space utilization and system returns 18.
